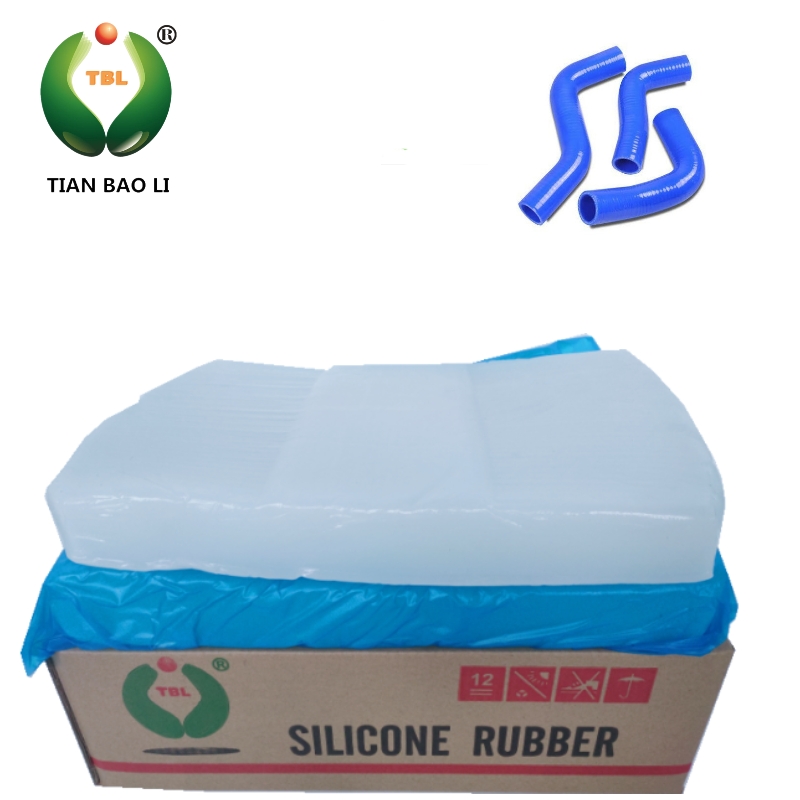

Fumed Silicone Rubber for extrusion TBL-921 Series （DCBP catalyst）

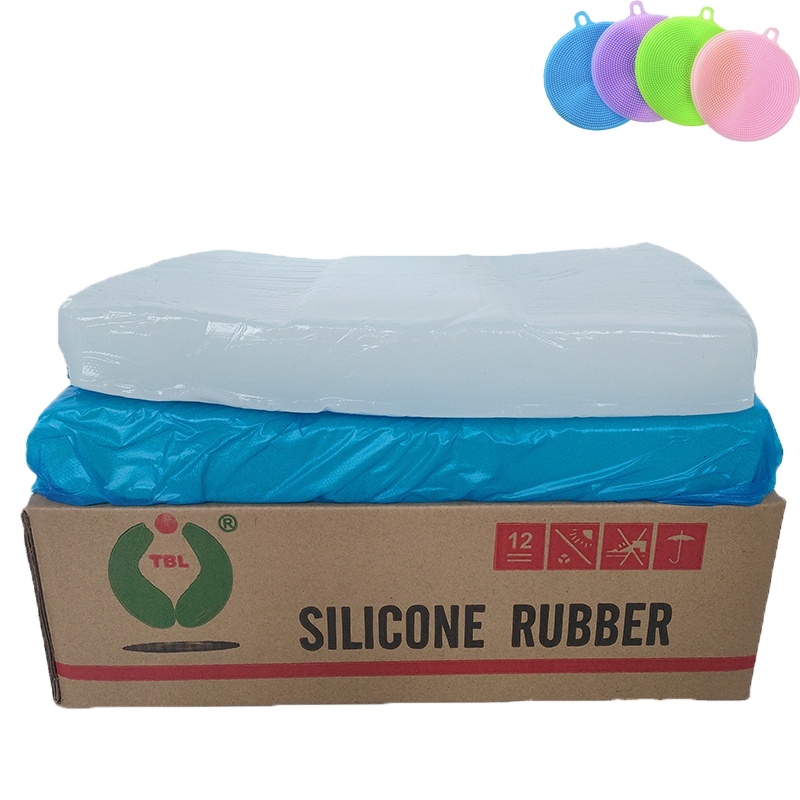

Fumed Silicone Rubber for molding TBL-900 Series
RTV2 Two-component liquid silicone foam-TBL-8500 Series

RTV2 Liquid Textile Coating Silicone Rubber -TBL-8800 Series

INTRODUCTION
Textile coating silicone rubber can be firmly adhered to the surface of textiles. Widely used in textile printing of clothing, socks, hats, gloves, etc. It’s platinum cure liquid silicone rubber, FDA food grade, non-toxic, odorless.It can be operated more easily without additives, suitable for both manual and mechanized.

TBL-8840 is a transparent, high strength, excellent performance of two-component coated silicone rubber. Its viscosity is moderate after mixing the two components, can be vacuum defoaming, and stored at room temperature for a long time, curing material without shrinkage. Through silk screen printing, dispensing and coating process, the product can be used in the garment industry to prepare trademarks, various printing and coated webbing, and can bond all kinds of fabrics firmly.

APPLICATION
Silicone rubber for fabric coating is widely used in garment factories; garment accessories factories; printing and embossing factories; hat factories; shoes factories; socks factories, bags and handbags factories; craft gifts factories; embroidery factories; marking and ribbon factories, etc.

l High transparency

l Moderate viscosity

l Strong bonding to the fabric

l Low linear shrinkage

l 100% curing, without curing by-products

l Operating temperature -50℃ to +200℃

Reference Standards	Property	Unit	Value
General Properties at 25±2℃
Visual	Appearance (A)	/	Transparent
Visual	Appearance (B)	/	Transparent
ASTM D1084	mixed viscosity	mPa.s	70000±10000
Operation Properties
T10/120℃x5min	30-50s	/	/
T90/120℃x5min	50-90s	/	/
Properties After Curing
ASTM D2240	Hardness	Shore A	40±2
ASTM D412	Tensile Strength	MPa	≥4.0
ASTM D412	Elongation at break	%	≥300
ASTM D624	Tear Strength	KN/m	≥15
1. The mixing rate(by weight)：A：B=1：1;

ADVANTAGES
* Environmental protection/non-toxicity, FDA food grade silicone

* Suitable viscosity, not easy to penetrate textile

* Can set color (multi-layer color), do not fall off when set color, pattern is not single, can form different patterns, silicone printing trend leads the fashion field.

* Various effects can be printed (bright or matte, round or right-angled effect, thick or thin, large or small patterns), strong stereoscopic effect, soft handle and strong adhesion.

* High wear resistance, brightness and washability

* Can firmly adhere to the surface of textiles, non-woven fabrics, dermis, imitation leather and other materials.

* The effect of wool pressing is good.

* Solve the problem of firmness of leather and waterproof fabric effectively

* Printing gloves, clothing, paper, sports goods, etc., cold and heat resistance, skid resistance, silk-printed patterns have a strong three-dimensional feel, and feel soft, and complement each other with textiles or leather goods; silk-printed patterns also have excellent peeling strength, wear resistance, brightness; it also has water-proof, skid-proof, breathable, high resistance, low temperature. And good leveling.

* Super elasticity, in the normal range of elasticity of the fabric does not fall off, cracking. Printing patterns do not decolor, do not re-dye (not sublimate).

*Good air permeability, outside water, oil and other pollutants can not enter, while the inside of the hot air can be permeable.

RTV2 food grade platinum cure liquid silicone rubber -TBL8100 Series

INTRODUCTION

The platinum cure silicone rubber has good fluidity and is suitable for manual operation. There are many choices of hardness 20 shore a is generally used to make cake mold, but some people are prefer to harder silicone such as 40 shore A. In a word, 5 shore A to 40 shore A silicone are suitable for bakery molds of various size of silicone trays.

TBL-81 series is two-component room temperature platinum vulcanized silicone rubber with high strength and excellent performance for human body.

It has extremely low viscosity, can be vulcanized at room temperature and at elevated temperature, and has excellent properties at - 50 ℃ ~ 200 ℃ for a long time. It can be used for various human limbs, including hands, feet, human masks and adult products.

Product Features

l Extremely low viscosity fit for making mold easier to discharge foam

l Excellent tensile and tear strength

l Low linear shrinkage

l 100% curing, without curing by-products

l Excellent temperature resistance, operation temperature -50℃ to +200℃

l Food grade silica gel, FDA

l Easy demoulding

Typical Applications

l Suitable for various molding products.

l Human limbs include hands, feet, body masks

l Adult products

Due to its environmental friendly, non-toxic, tasteless, odorless and high temperature resistant

properties, Liquid silicone for silicone trays for bakery is an excellent material to make all kinds of

silicone trays of food, it's a famous mold making material for bakery, widely used for cake mold, bread

mold, sugar food mold, chocolate mold, simulated fruit mold, cake mold, biscuit mold,etc.

ADVANTAGES

1. Passed FDA food grade certification
Food grade, non-toxic, tasteless and odorless,

2. High temperature resistance
High temperature resistance, applicable temperature range - 40 to 260 ℃, It can be used in microwave oven and oven.

3. Low viscosity
The liquid fluid is easy to pour, easy to release the bubbles in the mold, to get perfect and high quality silicone mold

4. Easy to clean
After use, the silicone mold can be cleaned by washing with clean water,

5. Long service life
The material performance of silicone rubber is stable, and the silicone mold is easy to use, long service life

6. Soft and comfortable
Silicone mold is soft and comfortable, good flexibility, easy to operate, not easy to deform.

7. Easy demoulding
The biggest advantage of the silicone mold is anti sticking, so the demoulding of the finished product is particularly convenient.

Reference Standards	Property	Unit	Value
General Properties at 25±2℃
Visual	Appearance (A)	/	Translucent
Visual	Appearance (B)	/	Translucent
ASTM D1084	mixed viscosity	mPa.s	2000±1000
Operation Properties at 25±2℃
Enterprise standard	Operation Time	min	30-60
Enterprise standard	Cure Time	h	3-6
Properties After Curing
ASTM D2240	Hardness	Shore A	10±2
ASTM D412	Tensile Strength	MPa	≥3.0
ASTM D412	Elongation at break	%	≥600
ASTM D624	Tear Strength	KN/m	≥7
1. The mixing rate(by weight)：A：B=1：1;

RTV2 Tin Condensation Cure Silicone for Gypsum Plaster Molding- TBL6900 Series

INTRODUCTION

Gypsum molding silicone is a very flexible molding silicone, it request the silicone hardness must not be too hard because gypsum is very delicate, it will break the gypsum products when demolding if the silicone mold is too hard, meanwhile, since plaster mouldings are always very with big size as well as with fine details, so it request the silicone mold be strong enough to resist the damage of the moulds during the demolding process.

TBL-69 series is a two-component condensation type RTV2 mold making silicone rubber. With good fluidity and low shrinkage rate. It has passed ROHS and REACH certification, and is suitable for the filling process, candles, resin crafts and other molds ect.

APPLICATION
It is not only uitable for molding variety of gypsum decorations and plater mouldings, but also suitable for molding art crafts, furniture, architectural elements, garden ornaments, shoe, tire, soap, candle, vacuum bagging, wind turbine blades, ship/boat hulls, aircraft hulls, FRP pipes/profiles, beacon lighthouse covers, military industry, aviation and other fields etc.

This flexible molding silicone is not only suitable for gypsum and plaster, but also materials such as resin, PU, PVC, polyester, gypsum/plaster, wax etc.

ADVANTAGES
* Low shrinkage
* Low viscosity
* Anti-deformation
* High temperature resistance
* Not oily
* No bubbles
* Excellent flow leveling which will copy finest details and patterns from exquisite products.
* Durable with excellent tear and tensile strength, guarantee molding times
* Easily demolding
* Resist aging, acid, alkali, corrosion and weather aging

ITEM NUMBER		COLOR	Hardness /shoreA	Viscosity/mpa.s	Mix ratio	Operation time /min，25℃	Curing time/25℃	Tear Strength /KN/m	Tensile Strength /Mpa	Elongation break/%
TBL-6920		WHITE	20±2	20000±2000	100:2	20-40	4-8h/25℃	20±2	≥3.5	≥400
TBL-6925		WHITE	25±2	25000±2000	100:2	20-40	4-8h/25℃	23±2	≥3.5	≥400
TBL-6930		WHITE	30±2	28000±2000	100:2	20-40	4-8h/25℃	23±2	≥3.5	≥400
	Note: The above data operation time and curing time can be adjusted according to customer requirements. Items that require multiple potting and bonding require special adjustments. Features and Benefits •Excellent mobility •Excellent tear strength • Low shrinkage •Excellent high temperature resistance 200-220℃ • The product is environmentally friendly, certified by ROHS and REACH • More times of mold turning • Does not oily leak

RTV2 Platinum liquid silicone gel potting compound for electronics and breast -TBL8000 series

INTRODUCTION
Heat dissipation silica gel is a heat conducting material with low thermal resistance, high thermal conductivity and high flexibility. The high flexibility of the material can reduce the pressure required between components and cover the micro uneven surface, so as to make the components fully contact and improve the heat conduction efficiency. It is especially suitable for the heat conduction demand with limited space

TBL-80 series is a highly transparent two-component addition silicone gel. After the two components are mixed, the viscosity is extremely low. It does not need vacuum degassing. It can be degassed automatically or degassed by a degassing machine. It can be cured at room temperature or heated, and the material does not shrink during curing.

APPLICATION
At present, thermal conductive silicone is widely used in motor controller, power supply, computer and automotive electronics. In addition, chip cooling such as military supplies usually involves contact cooling of electronic devices or mechanical structures. It is used to reduce contact thermal resistance and enhance heat transfer at the contact interface, which will directly improve the performance, accuracy and reliability of the equipment or system itself

•Special for breast pads and stickers - padding for women's underwear

Precise electronic components - potting protection of module power supply and circuit boards with high requirements for transparency and recovery

• Potting of liquid tank filter - sealing and waterproofing of instrumentation

• Silicone puff

ADVANTAGES

Very high transparency

• Very low viscosity

• Low linear shrinkage

• 100% solids, no curing by-products

•Operating temperature -50℃~200℃

•Platinum vulcanization is environmentally friendly and non-toxic

• Fast rebound

Item	Color	Mix ratio	Operation time（min，25℃）	Curing time	Penetration（1/10mm）	Viscosity
TBL-8010	Transparent	1:1	30-50（Adjustable）	4-6h（25℃）/20-30min（80℃）	160-180	1000cps
TBL-8020	Transparent	1:1	30-50（Adjustable）	4-6h（25℃）/20-30min（80℃）	200-220	1000cps
TBL-8030	Transparent	1:1	30-50（Adjustable）	4-6h（25℃）/20-30min（80℃）	300-320	1000cps

Quality Guaranteed HTV Silicone Rubber Raw Material With High Heat Resistance TBL-500A Series

The hardness range of this series is 30-80A, with heat resistant, translucent。
High transparent food grade HTV silicone rubber raw material TBL-500 Series

The hardness range of this series is 20-80A, with the characteristics of high transparency.

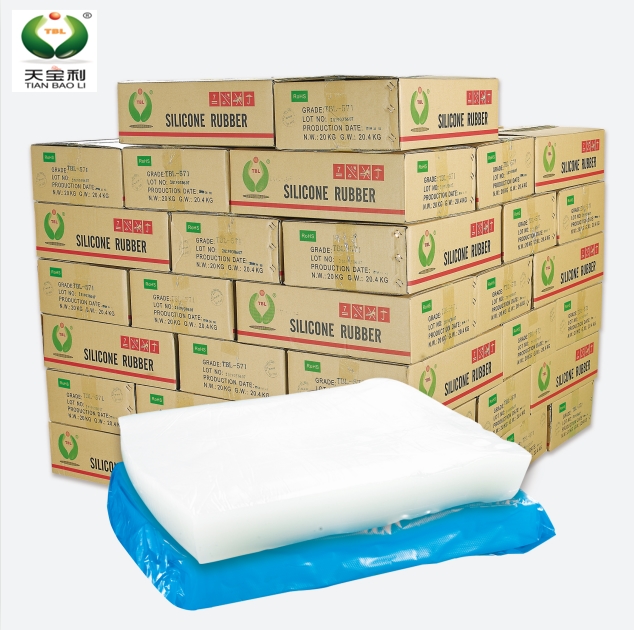

High Tensile Strength Translucent Molding HTV Silicone Rubber with good resilience TBL-501 Series

Tian Bao Li disclaims liability for any incidental or consequential damages.
Food Grade Liquid Silicone Rubber TBL-8800 Series

Sealed and stored it in a cool place out of rain and direct sunlight.
Quality guaranteed TBL-8700 Series Self-lubricating Liquid Silicone Rubber

TBL-8700 series product is two-component addition type liquid silicone rubber.
Excellent Resilience Liquid Silicone Rubber TBL-8100 Series

This series of products are non-dangerous goods. The valid period is 1 year.
TBL-8600 Series Low Temperature curing Liquid Silicone Rubber

TBL-8060 series product is two-component addition type liquid silicone rubber.
High Transparent Medical Grade Transparent Liquid Silicone Rubber TBL-8880 Series

TBL-8880 series is two-component additive molding series liquid silicone rubber.
Soft Liquid Silicone Gel TBL-8020~8050 Series

TBL-8020~8050 liquid silicone gel two-component,transparent additive liquid silicone rubber.

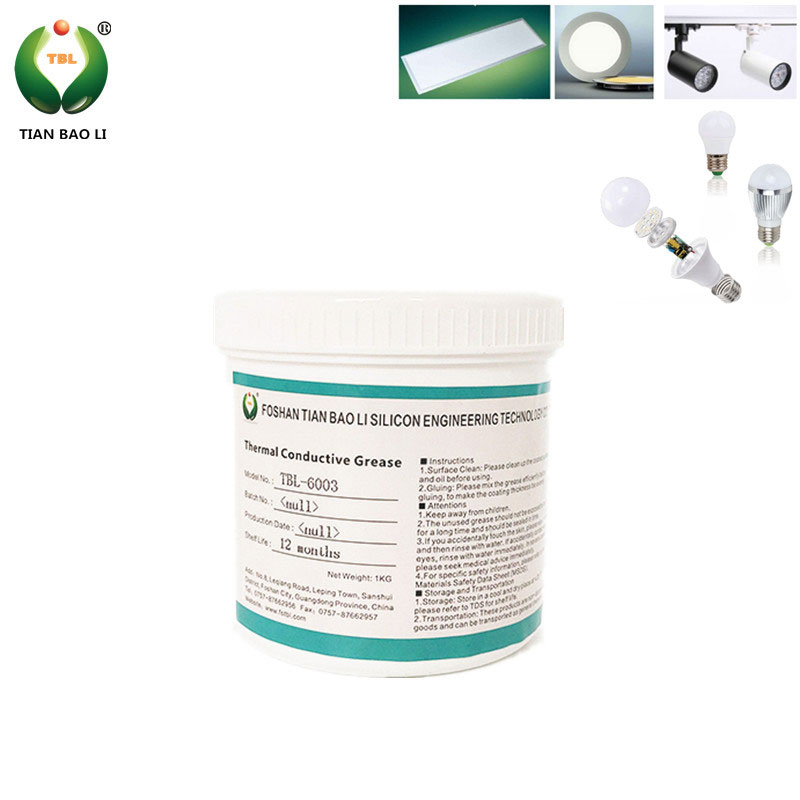

Thermal Conductive Grease TBL-6003-1.0

The data in this manual were obtained under laboratory conditions.

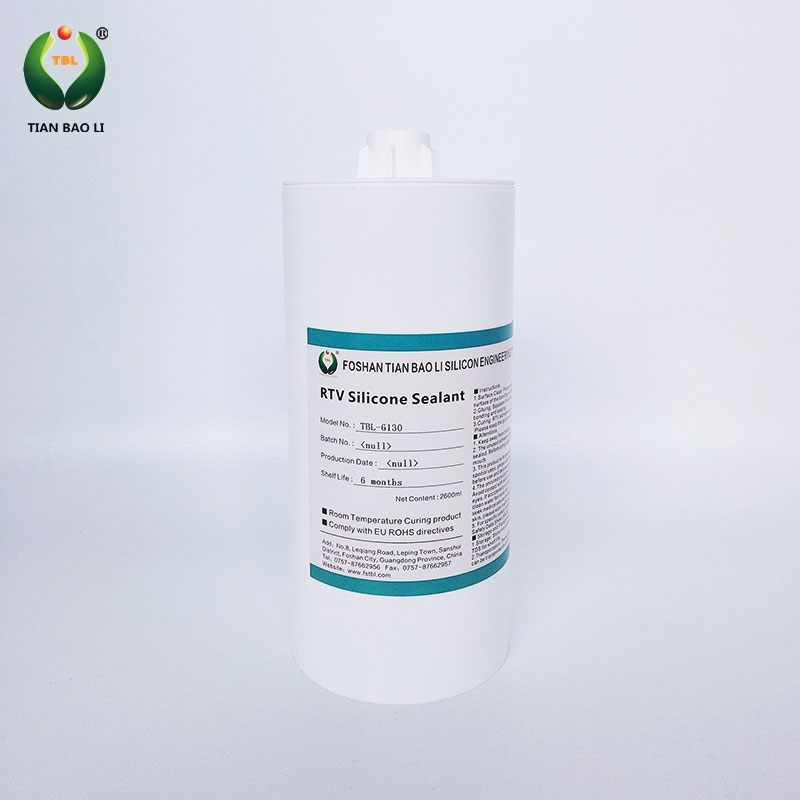

Transparent Silicone Sealant TBL-6130
