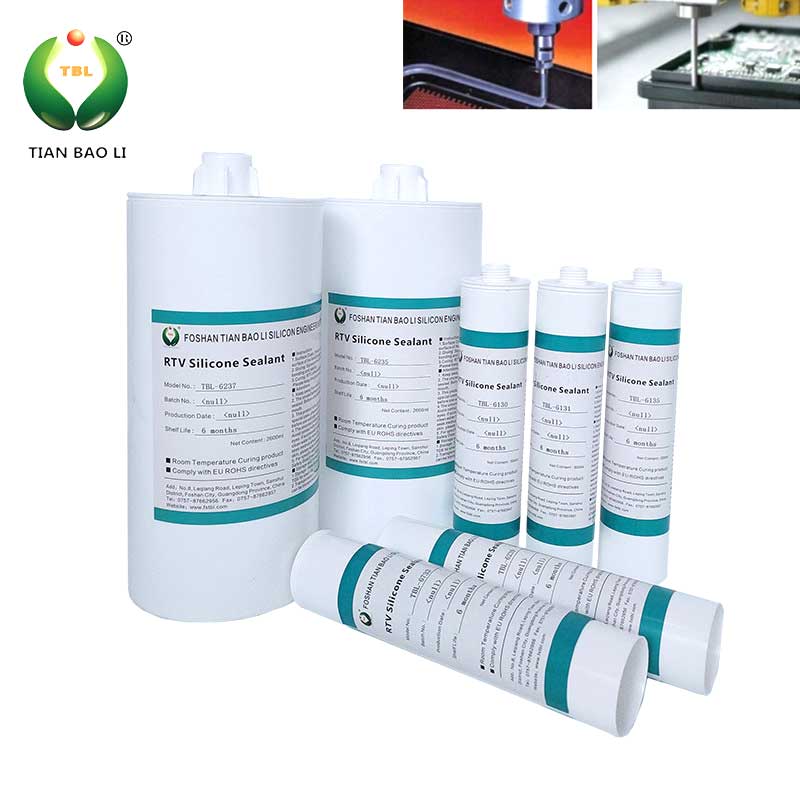

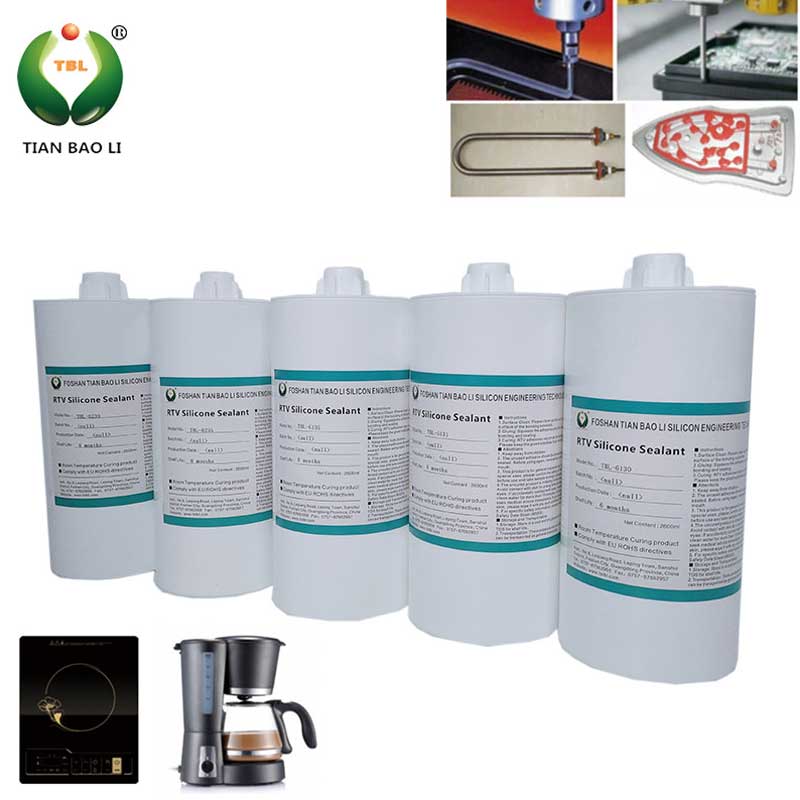

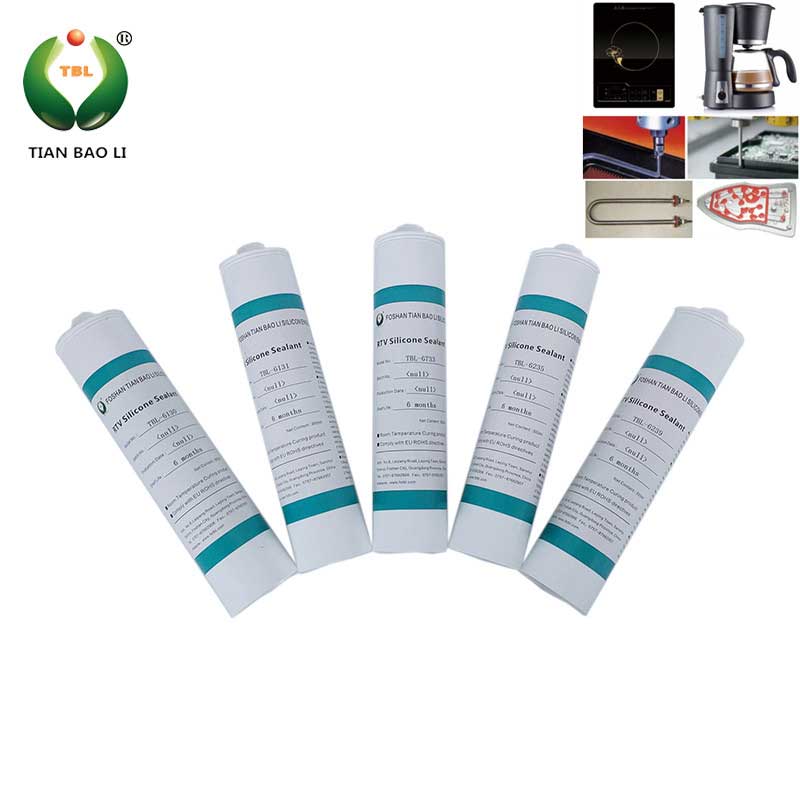

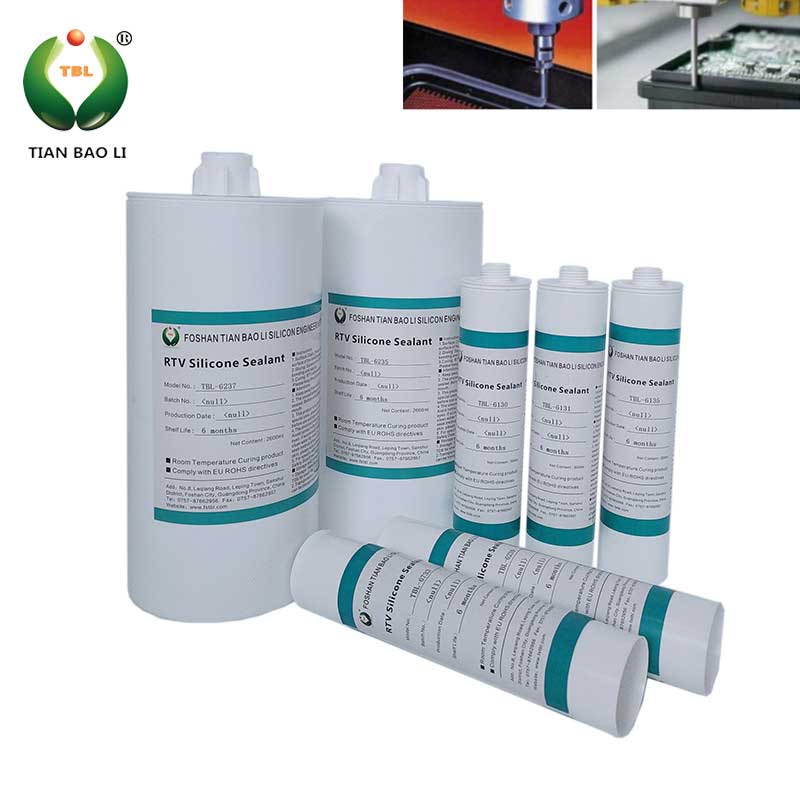

Silicone Sealant, White/Black paste, cures on exposure to atmospheric moisture to form a silicone elastomer.
Moisture Curing, No corrosion to most substrates.
Excellent adhesion to various substrates.
Excellent dielectric properties and weather resistance.
Stable and flexible from -40℃ to+180℃.
Complies with RoHS.
PCB board component fixing.
Bonding and fixing.
The sealant will be slight yellowing during storage, which will not affect product properties.
Clean surface: Please clean up the dust, rust, and oil on the surface of the bonding substrate.
Gluing: Squeeze the sealant onto the cleaned surface.
Curing: Place the glued part in the air, after skin formation, cure continues inward from the surface.Under 25℃ and 55% relative humidity conditions for curing 24 hours, the sealant will cure to a depth of 2 to 4mm, with time prolonged, the curing depth gradually increased.
Storage: The unused sealant should be immediately tightened and sealed. Before using again, remove the crust at the nozzle mouth and do not affect normal use.In the process of storage, the sealant may be a small amount of solidification at the nozzle, which can be used normally after removal without affecting the product properties.
Store in a cool and dry place below 35 ℃.
Shelf life: 6 months.
1. Keep away from children.
2. It is recommended to use it in a well-ventilated area to reduce odor.
3. If accidentally touch the skin or eyes, wipe them clean immediately, then rinse with water and seek medical advice.
4. For safety information, please refer to the Material Safety Data Sheet (MSDS).
100ml / piece, 100 pieces / Carton.
300ml / piece, 24 pieces / Carton.
2600ml / piece, 4 pieces / Carton.
The data in this manual were obtained under laboratory conditions, due to differences in the use environment, users should refer to these data and conditions for analysis and testing. Tian Bao Li does not guarantee the sales of products and the use of Trimble products under specific operating conditions, and does not assume any liability for direct, indirect or accidental losses. If the user encounters any problems during use, you can contact the Tian Bao Li technical service department, we will provide you with the help.
General Properties at 25±2℃, 60±5%RH
Properties cured 7 days at 25±2℃, 60±5%RH
Hardness (Shore A)
Elongation at break
1. The latest version applies to this document.
2. Determination of extrusion rate at 0.4MPa with a 3mm diameter nozzle.
