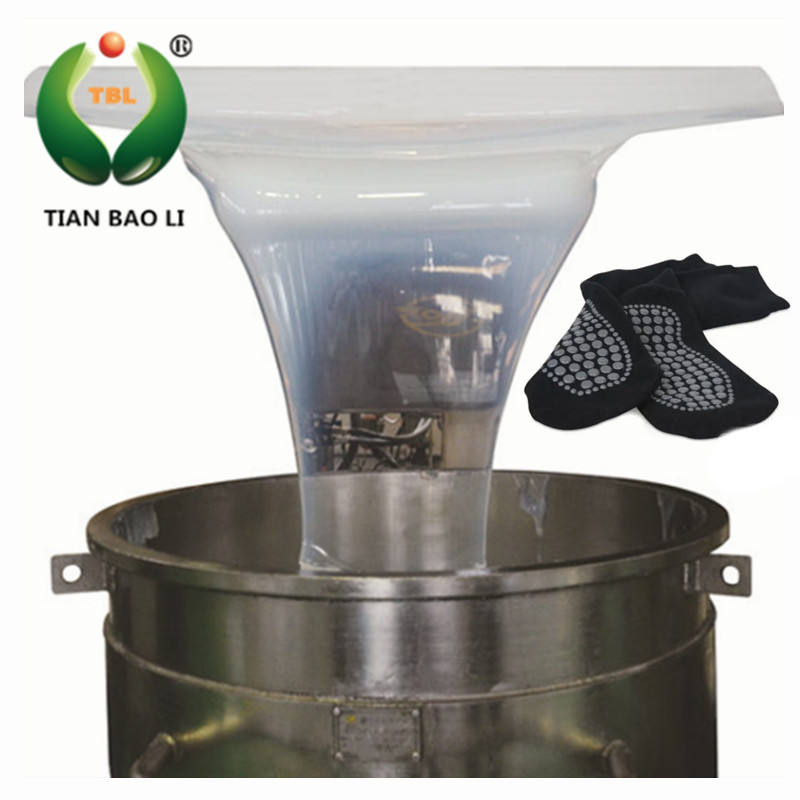

RTV2 Liquid Textile Coating Silicone Rubber -TBL-8800 Series
INTRODUCTION
Textile coating silicone rubber can be firmly adhered to the surface of textiles. Widely used in textile printing of clothing, socks, hats, gloves, etc. It’s platinum cure liquid silicone rubber, FDA food grade, non-toxic, odorless.It can be operated more easily without additives, suitable for both manual and mechanized.
TBL-8840 is a transparent, high strength, excellent performance of two-component coated silicone rubber. Its viscosity is moderate after mixing the two components, can be vacuum defoaming, and stored at room temperature for a long time, curing material without shrinkage. Through silk screen printing, dispensing and coating process, the product can be used in the garment industry to prepare trademarks, various printing and coated webbing, and can bond all kinds of fabrics firmly.
APPLICATION
Silicone rubber for fabric coating is widely used in garment factories; garment accessories factories; printing and embossing factories; hat factories; shoes factories; socks factories, bags and handbags factories; craft gifts factories; embroidery factories; marking and ribbon factories, etc.
l High transparency
l Moderate viscosity
l Strong bonding to the fabric
l Low linear shrinkage
l 100% curing, without curing by-products
l Operating temperature -50℃ to +200℃
Reference Standards |
Property |
Unit |
Value |
General Properties at 25±2℃ |
|||
Visual |
Appearance (A) |
/ |
Transparent |
Appearance (B) |
/ |
Transparent |
|
ASTM D1084 |
mixed viscosity |
mPa.s |
70000±10000 |
Operation Properties |
|||
T10/120℃x5min |
30-50s |
/ |
/ |
T90/120℃x5min |
50-90s |
/ |
/ |
Properties After Curing |
|||
ASTM D2240 |
Hardness |
Shore A |
40±2 |
ASTM D412 |
Tensile Strength |
MPa |
≥4.0 |
ASTM D412 |
Elongation at break |
% |
≥300 |
ASTM D624 |
Tear Strength |
KN/m |
≥15 |
1. The mixing rate(by weight):A:B=1:1; |
ADVANTAGES
* Environmental protection/non-toxicity, FDA food grade silicone
* Suitable viscosity, not easy to penetrate textile
* Can set color (multi-layer color), do not fall off when set color, pattern is not single, can form different patterns, silicone printing trend leads the fashion field.
* Various effects can be printed (bright or matte, round or right-angled effect, thick or thin, large or small patterns), strong stereoscopic effect, soft handle and strong adhesion.
* High wear resistance, brightness and washability
* Can firmly adhere to the surface of textiles, non-woven fabrics, dermis, imitation leather and other materials.
* The effect of wool pressing is good.
* Solve the problem of firmness of leather and waterproof fabric effectively
* Printing gloves, clothing, paper, sports goods, etc., cold and heat resistance, skid resistance, silk-printed patterns have a strong three-dimensional feel, and feel soft, and complement each other with textiles or leather goods; silk-printed patterns also have excellent peeling strength, wear resistance, brightness; it also has water-proof, skid-proof, breathable, high resistance, low temperature. And good leveling.
* Super elasticity, in the normal range of elasticity of the fabric does not fall off, cracking. Printing patterns do not decolor, do not re-dye (not sublimate).
*Good air permeability, outside water, oil and other pollutants can not enter, while the inside of the hot air can be permeable.
RTV2 Platinum liquid silicone gel potting compound for electronics and breast -TBL8000 series
INTRODUCTION
Heat dissipation silica gel is a heat conducting material with low thermal resistance, high thermal conductivity and high flexibility. The high flexibility of the material can reduce the pressure required between components and cover the micro uneven surface, so as to make the components fully contact and improve the heat conduction efficiency. It is especially suitable for the heat conduction demand with limited space
TBL-80 series is a highly transparent two-component addition silicone gel. After the two components are mixed, the viscosity is extremely low. It does not need vacuum degassing. It can be degassed automatically or degassed by a degassing machine. It can be cured at room temperature or heated, and the material does not shrink during curing.
APPLICATION
At present, thermal conductive silicone is widely used in motor controller, power supply, computer and automotive electronics. In addition, chip cooling such as military supplies usually involves contact cooling of electronic devices or mechanical structures. It is used to reduce contact thermal resistance and enhance heat transfer at the contact interface, which will directly improve the performance, accuracy and reliability of the equipment or system itself
•Special for breast pads and stickers - padding for women's underwear
Precise electronic components - potting protection of module power supply and circuit boards with high requirements for transparency and recovery
• Silicone puff
ADVANTAGES
Very high transparency
• Very low viscosity
• Low linear shrinkage
• 100% solids, no curing by-products
•Operating temperature -50℃~200℃
•Platinum vulcanization is environmentally friendly and non-toxic
• Fast rebound
Item |
Color |
Mix ratio |
Operation time(min,25℃) |
Curing time |
Penetration(1/10mm) |
Viscosity |
TBL-8010 |
Transparent |
1:1 |
30-50(Adjustable) |
4-6h(25℃)/20-30min(80℃) |
160-180 |
1000cps |
TBL-8020 |
Transparent |
1:1 |
30-50(Adjustable) |
4-6h(25℃)/20-30min(80℃) |
200-220 |
1000cps |
TBL-8030 |
Transparent |
1:1 |
30-50(Adjustable) |
4-6h(25℃)/20-30min(80℃) |
300-320 |
1000cps |

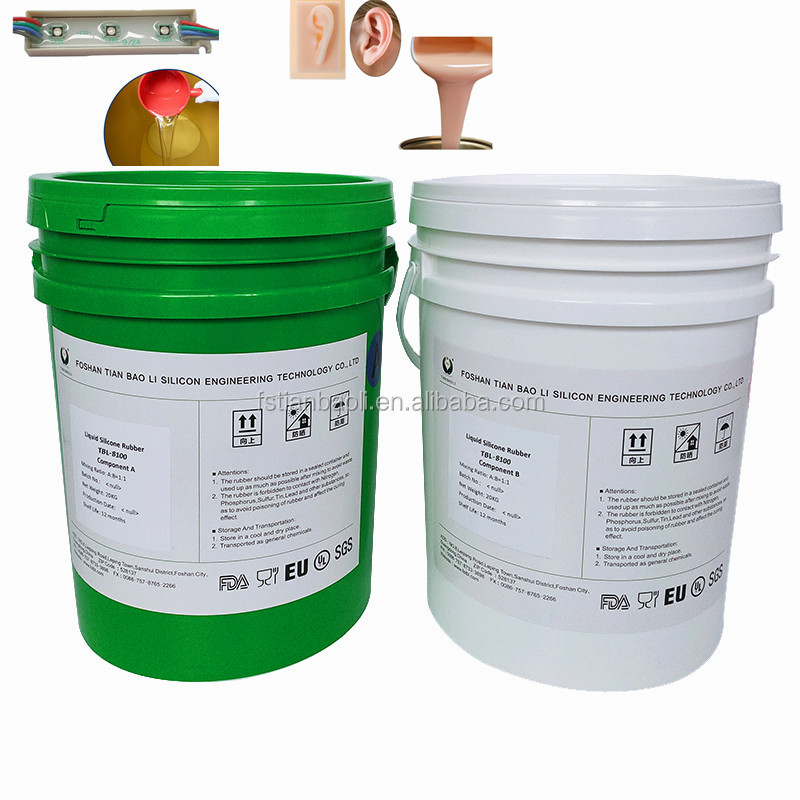

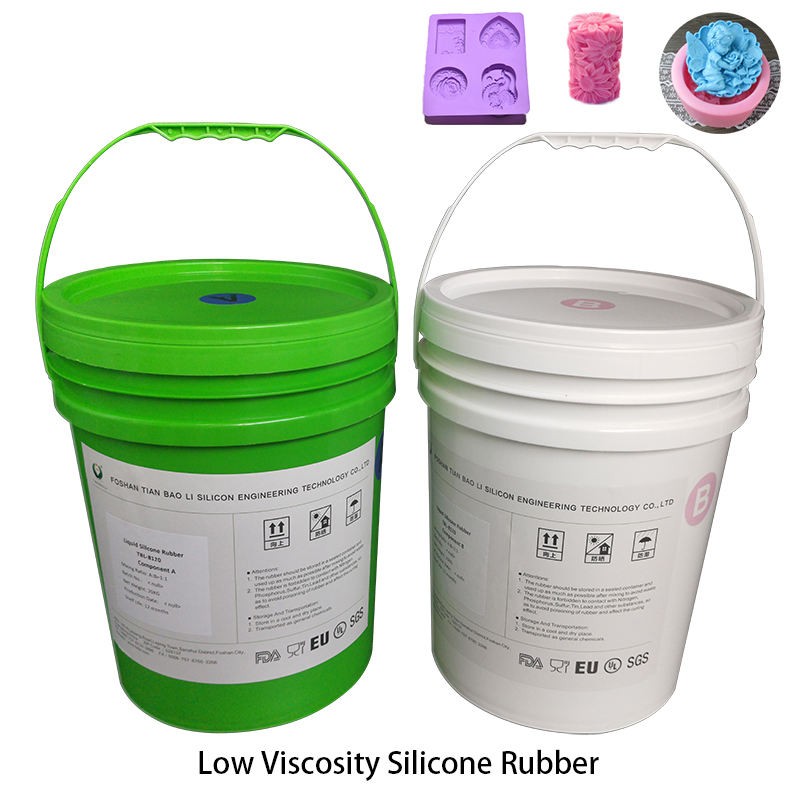

RTV2 food grade platinum cure liquid silicone rubber -TBL8100 Series
INTRODUCTION
The platinum cure silicone rubber has good fluidity and is suitable for manual operation. There are many choices of hardness 20 shore a is generally used to make cake mold, but some people are prefer to harder silicone such as 40 shore A. In a word, 5 shore A to 40 shore A silicone are suitable for bakery molds of various size of silicone trays.
TBL-81 series is two-component room temperature platinum vulcanized silicone rubber with high strength and excellent performance for human body.
It has extremely low viscosity, can be vulcanized at room temperature and at elevated temperature, and has excellent properties at - 50 ℃ ~ 200 ℃ for a long time. It can be used for various human limbs, including hands, feet, human masks and adult products.
Product Features
l Extremely low viscosity fit for making mold easier to discharge foam
l Excellent tensile and tear strength
l Low linear shrinkage
l 100% curing, without curing by-products
l Excellent temperature resistance, operation temperature -50℃ to +200℃
l Food grade silica gel, FDA
l Easy demoulding
Typical Applications
l Suitable for various molding products.
l Human limbs include hands, feet, body masks
l Adult products
Due to its environmental friendly, non-toxic, tasteless, odorless and high temperature resistant
properties, Liquid silicone for silicone trays for bakery is an excellent material to make all kinds of
silicone trays of food, it's a famous mold making material for bakery, widely used for cake mold, bread
mold, sugar food mold, chocolate mold, simulated fruit mold, cake mold, biscuit mold,etc.
ADVANTAGES
1. Passed FDA food grade certification
Food grade, non-toxic, tasteless and odorless,
2. High temperature resistance
High temperature resistance, applicable temperature range - 40 to 260 ℃, It can be used in microwave oven and oven.
3. Low viscosity
The liquid fluid is easy to pour, easy to release the bubbles in the mold, to get perfect and high quality silicone mold
4. Easy to clean
After use, the silicone mold can be cleaned by washing with clean water,
5. Long service life
The material performance of silicone rubber is stable, and the silicone mold is easy to use, long service life
6. Soft and comfortable
Silicone mold is soft and comfortable, good flexibility, easy to operate, not easy to deform.
7. Easy demoulding
The biggest advantage of the silicone mold is anti sticking, so the demoulding of the finished product is particularly convenient.
Reference Standards |
Property |
Unit |
Value |
General Properties at 25±2℃ |
|||
Visual |
Appearance (A) |
/ |
Translucent |
Appearance (B) |
/ |
Translucent |
|
ASTM D1084 |
mixed viscosity |
mPa.s |
2000±1000 |
Operation Properties at 25±2℃ |
|||
Enterprise standard |
Operation Time |
min |
30-60 |
Enterprise standard |
Cure Time |
h |
3-6 |
Properties After Curing |
|||
ASTM D2240 |
Hardness |
Shore A |
10±2 |
ASTM D412 |
Tensile Strength |
MPa |
≥3.0 |
ASTM D412 |
Elongation at break |
% |
≥600 |
ASTM D624 |
Tear Strength |
KN/m |
≥7 |
1. The mixing rate(by weight):A:B=1:1; |

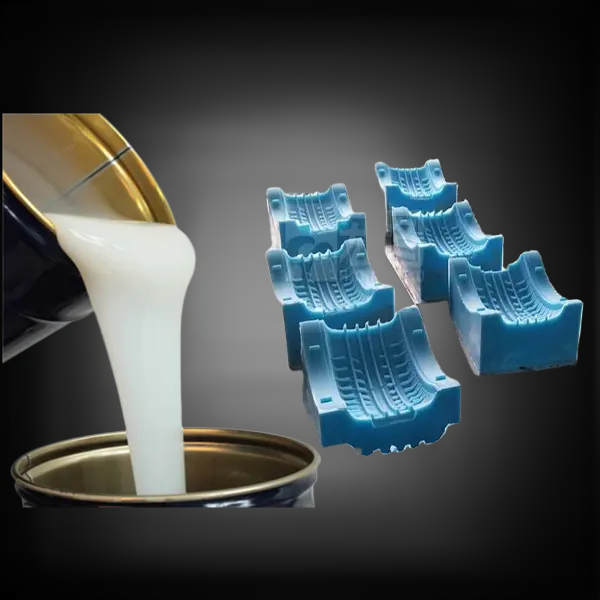

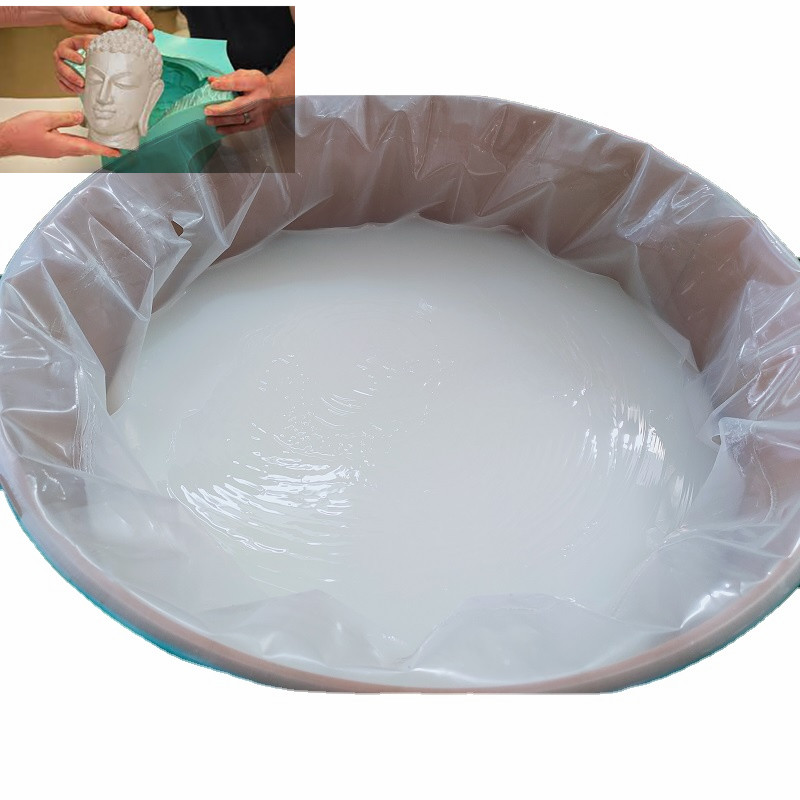

RTV2 Tin Condensation Cure Silicone for Gypsum Plaster Molding- TBL6900 Series
INTRODUCTION
Gypsum molding silicone is a very flexible molding silicone, it request the silicone hardness must not be too hard because gypsum is very delicate, it will break the gypsum products when demolding if the silicone mold is too hard, meanwhile, since plaster mouldings are always very with big size as well as with fine details, so it request the silicone mold be strong enough to resist the damage of the moulds during the demolding process.
TBL-69 series is a two-component condensation type RTV2 mold making silicone rubber. With good fluidity and low shrinkage rate. It has passed ROHS and REACH certification, and is suitable for the filling process, candles, resin crafts and other molds ect.
APPLICATION
It is not only uitable for molding variety of gypsum decorations and plater mouldings, but also suitable for molding art crafts, furniture, architectural elements, garden ornaments, shoe, tire, soap, candle, vacuum bagging, wind turbine blades, ship/boat hulls, aircraft hulls, FRP pipes/profiles, beacon lighthouse covers, military industry, aviation and other fields etc.
This flexible molding silicone is not only suitable for gypsum and plaster, but also materials such as resin, PU, PVC, polyester, gypsum/plaster, wax etc.
ADVANTAGES
* Low shrinkage
* Low viscosity
* Anti-deformation
* High temperature resistance
* Not oily
* No bubbles
* Excellent flow leveling which will copy finest details and patterns from exquisite products.
* Durable with excellent tear and tensile strength, guarantee molding times
* Easily demolding
* Resist aging, acid, alkali, corrosion and weather aging
ITEM NUMBER |
COLOR |
Hardness /shoreA |
Viscosity/mpa.s |
Mix ratio |
Operation time /min,25℃ |
Curing time/25℃ |
Tear Strength /KN/m |
Tensile Strength /Mpa |
Elongation break/% |
|
TBL-6920 |
WHITE |
20±2 |
20000±2000 |
100:2 |
20-40 |
4-8h/25℃ |
20±2 |
≥3.5 |
≥400 |
|
TBL-6925 |
WHITE |
25±2 |
25000±2000 |
100:2 |
20-40 |
4-8h/25℃ |
23±2 |
≥3.5 |
≥400 |
|
TBL-6930 |
WHITE |
30±2 |
28000±2000 |
100:2 |
20-40 |
4-8h/25℃ |
23±2 |
≥3.5 |
≥400 |
|
Note: The above data operation time and curing time can be adjusted according to customer requirements. Items that require multiple potting and bonding require special adjustments.
Features and Benefits •Excellent mobility •Excellent tear strength • Low shrinkage •Excellent high temperature resistance 200-220℃ • The product is environmentally friendly, certified by ROHS and REACH • More times of mold turning • Does not oily leak |
ABOUT US
Company Introduction
Foshan Tian Bao Li Silicon Engineering Technology Co., Ltd is a wholly owned subsidiary of FOSHAN GOLDEN MILKY WAY INTELLIGENT EQUIPMENT CO., LTD. GMK was listed on the Growth Enterprise Market on March 1, 2017 (stock code : 300619).

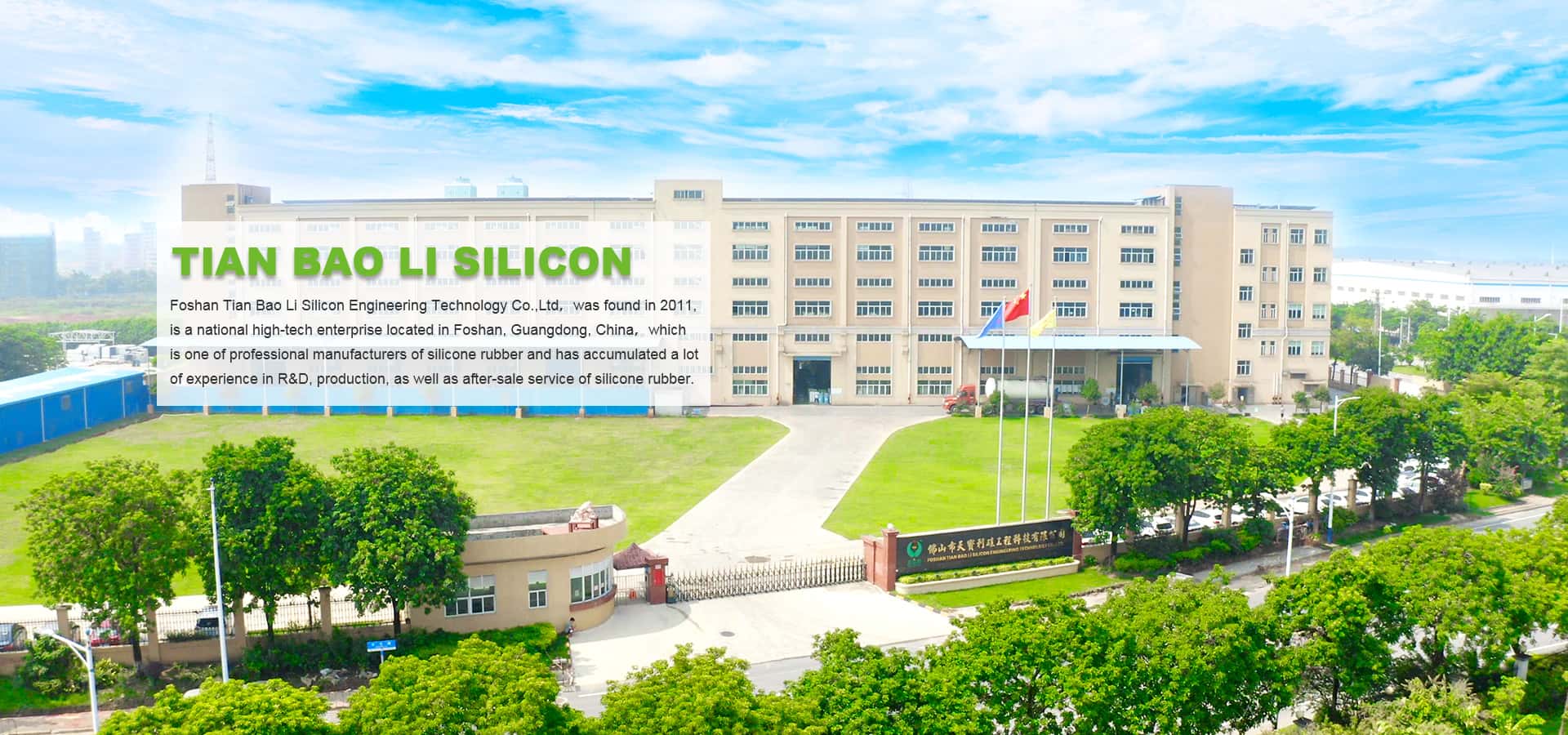

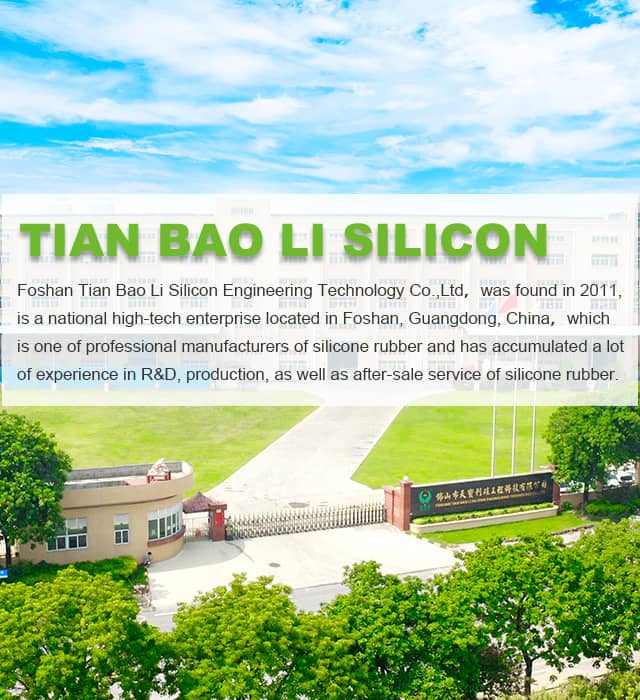

Foshan Tian Bao Li Silicon Engineering Technology Co., Ltd was found in 2011, is a national high-tech enterprise which devote itself to the research, development, production and management of organic silicon materials.

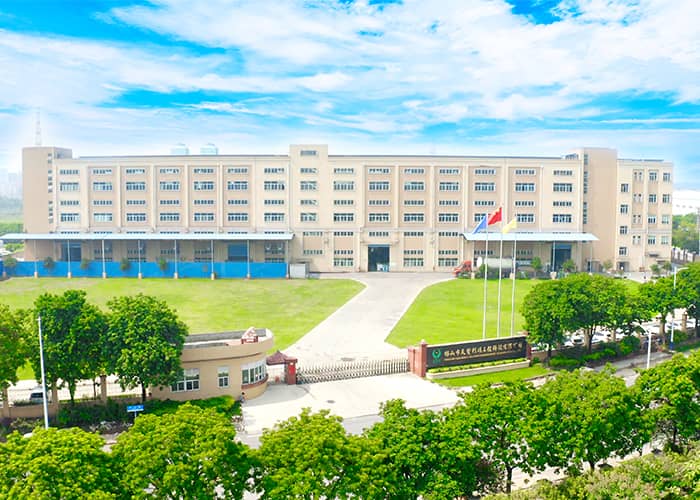

The factory is located in Sanshui Industrial Park, Foshan City, Guangdong Province. It covers an area of 26700 M2, with the investment over 80 million RMB and new plants of 15000 M2 at first stage.
As one of professional silicone rubber manufacturers, we have accumulated a lot of experience in R&D, production, as well as after-sale service of silicone rubber. TBL owns domestic first silicon rubber automatic production line and various of the advanced silicon rubber production equipment that the annual production capacity is more than 30000 metric tons annually.

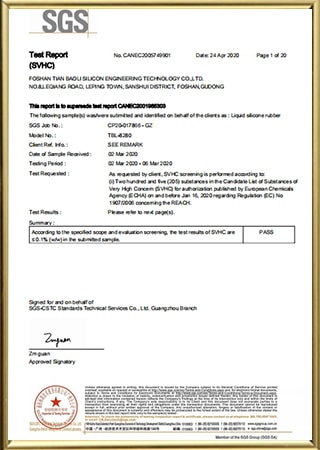

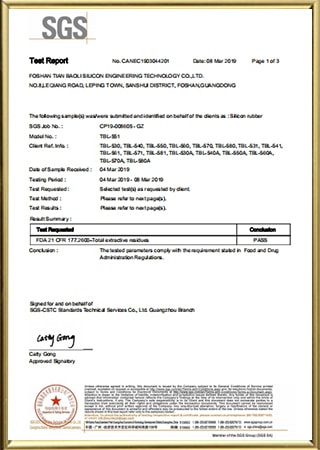

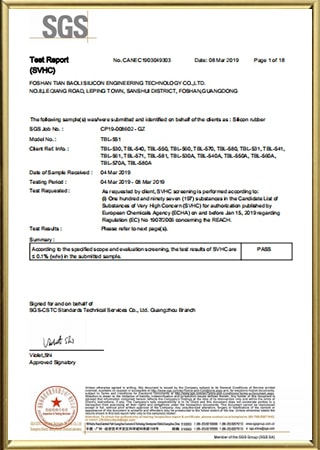

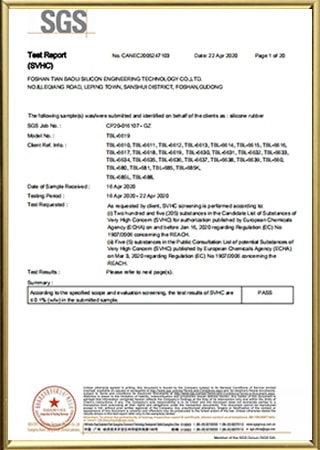

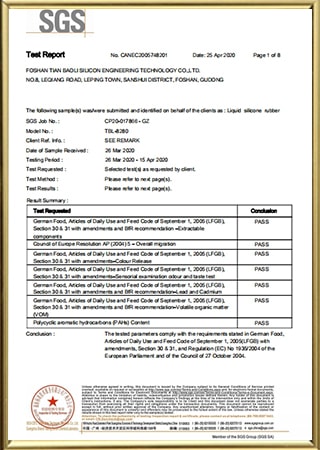

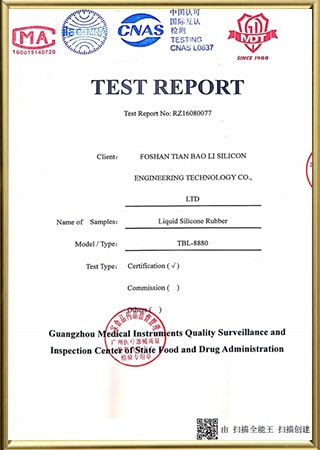

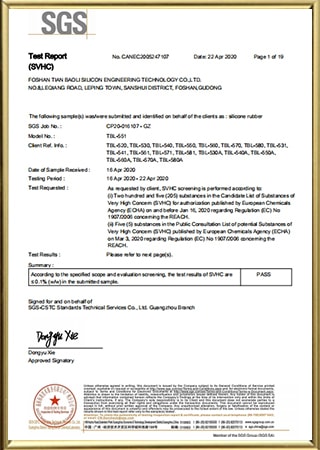

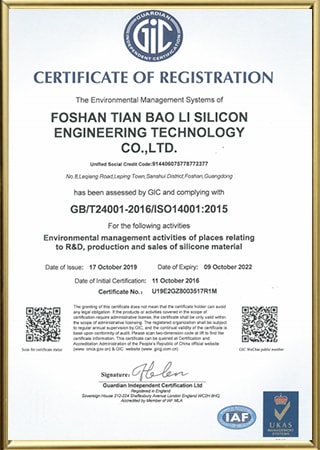

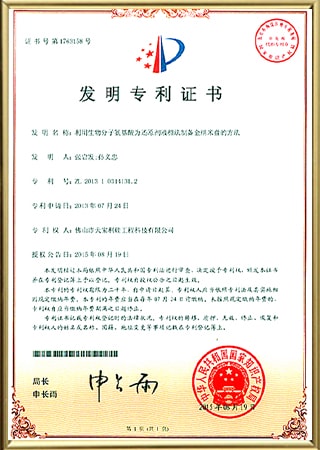

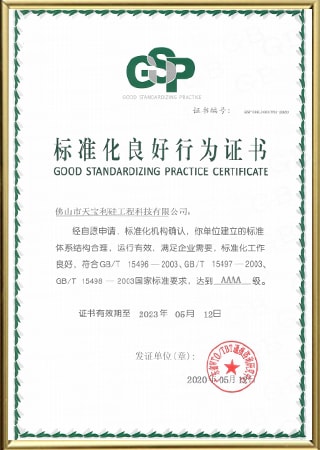

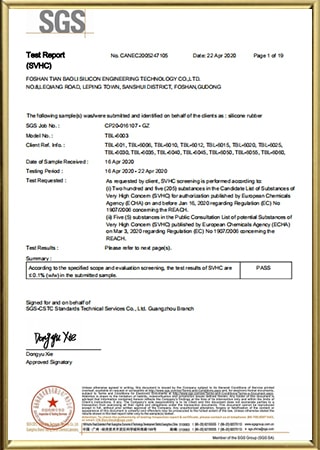

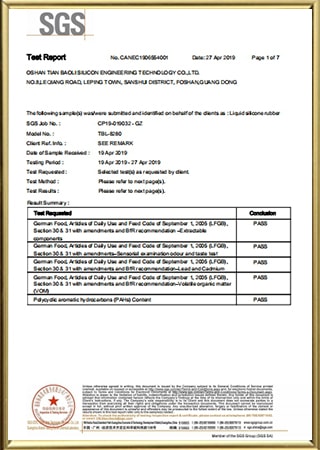

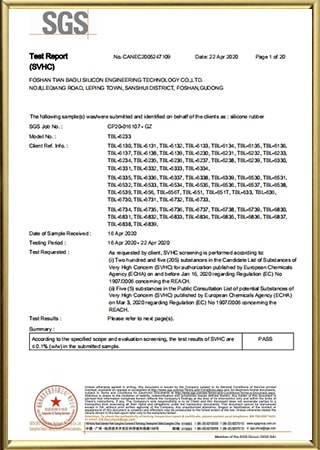

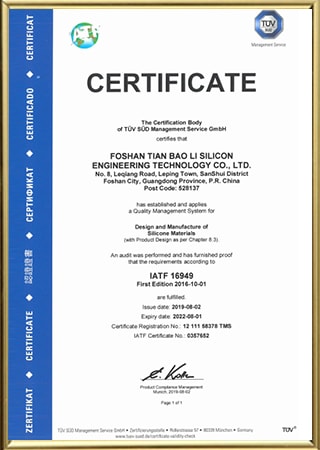

MoreCERTIFICATE
R & D
TECHNICAL R & D
Foshan Tian Bao Li Silicon Engineering Technology Co., Ltd. has a technical R&D team with more than 10 core R & D persons and have more than 30 professional and technical persons.
QUALITY CONTROL
Testing Equipment & Aging Testing Equipment
LABORATORY
Laboratory: 8 rooms
Test Center: 2 rooms
PRODUCT ADVANTAGE
-
High Temperature Resistance
Silicone Rubber applicable temperature from -40°C to +230°C, it can be used in microwave and oven.
-
Easy to Clean
Silicone Rubber finished products just need water to do cleaning.
-
Long Life
Stable chemical properties.
-
Soft and Comfortable
Benefit from silicone rubber softness, mould products comfortable touch, extremely flexible and not deformed.
-
Eco-Friendly
Silicone Rubber does not produce and toxic or hazardous substances from raw materials to finished products.
NEWS
You can get the latest industry information from here.

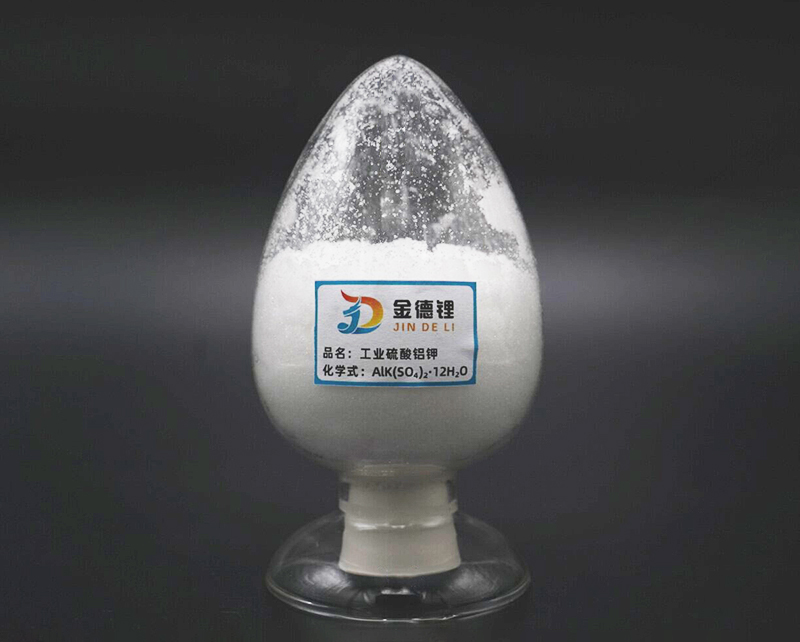

The Versatility and Benefits of Potassium Alum
The Versatility and Benefits of Potassium Alum:
What Is Alum and How Is It Used?
What Is Alum and How Is It Used?
Potassium Alum: A Versatile Ingredient for Your Needs
Potassium Alum: A Versatile Ingredient for Your Needs

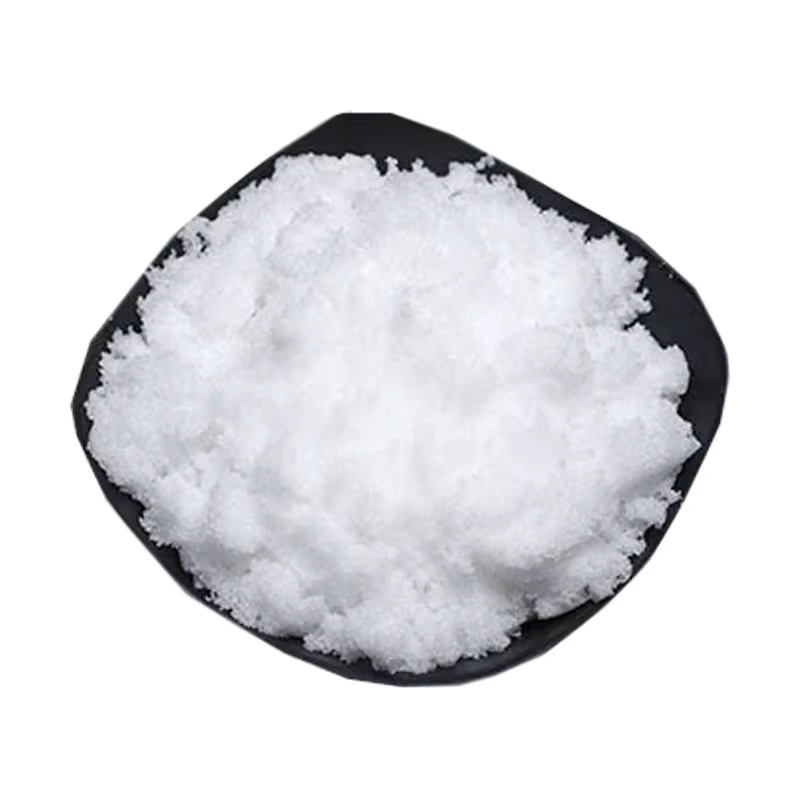

Alum
Alum

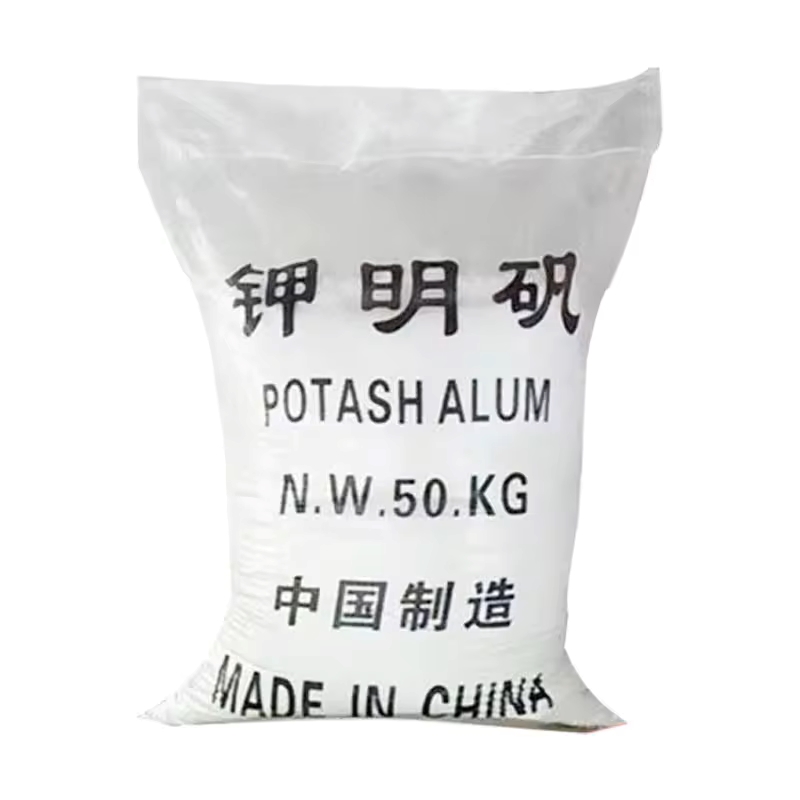

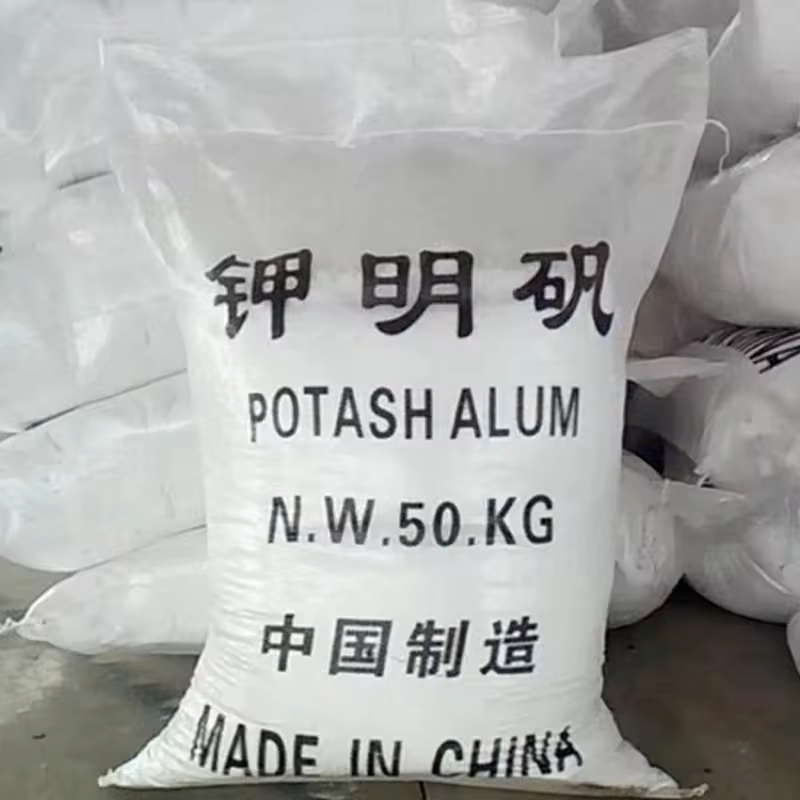

Potash Alum Industrial application
