TBL-8780 series is two-component addition type liquid silicone rubber, which has high and low temperature resistant character,good weather resistant character, high transparent grade, good anti-tear intensity, good tensile character, good resilience character, and goog anti yellowing character.
This series product has the character of fast high temperature curing shape forming speed, adopts the liquid injection molding process technology. It is widely used in manufacturing of food grade products,such as sports goods diving mask,frog legs etc.
Color: Transparent
Application: Sports Goods; diving mask; frog legs,etc
Appearance: Colorless Transparent Liquid.
Product name: Liquid Silicone Rubber.
Hardness Shore A: 30 - 80.
Features: High transparency;High strength;Fast cure speed.
Shelf life: 12 Months.
HS code: 3910000000.
Viscosity: Favorable.
Product Presentation
This product doesn't use substances prohibited by ROHS instructions, and hazardous substances shall be implemented according to ROHS instructions. The third party certification reports such as ROHS, REACH and FDA will be updated every year.
Travel Release Of Liability
All above suggestions on using are based on our experience. Consumers must conduct their own experiments and analysis to determine whether these products are suitable for the special use of users. In no case shall we be responsible for the end use of the consumer. Every procedure must be adapted to all legal rules and authoritative legislation.
Product Presentation
This product doesn't use substances prohibited by ROHS instructions, and hazardous substances shall be implemented according to ROHS instructions. The third party certification reports such as ROHS, REACH and FDA will be updated every year.
Travel Release Of Liability
All above suggestions on using are based on our experience. Consumers must conduct their own experiments and analysis to determine whether these products are suitable for the special use of users. In no case shall we be responsible for the end use of the consumer. Every procedure must be adapted to all legal rules and authoritative legislation.
How To Use
1．We suggest that the consumer use the liquid injection molding machine to inject into the mold and manufacture products.
2．The two components of A and B must be completely mixed according to the weight or volume ratio of 1:1. The vulcanization time is determined to the mold temperature.Under high temperature conditions,the short time required for product molding. If the silicone product is thick and large, it takes a long time to form.
Packaging, Storage and Caution

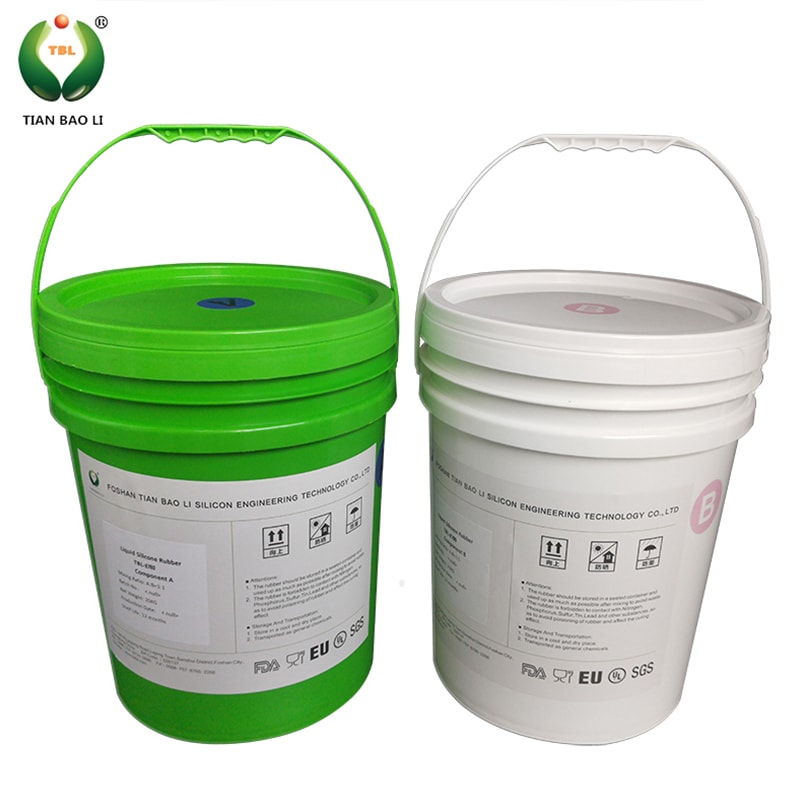

1.This series of product is packed in 20KG/Plastic Straight Barrel or 200KG/Iron Drum,linked with plastic bags.
2.Products should be sealed and stored in a cool place, prevent rain and sunlight exposure.
3.This series of products are non-dangerous goods. The valid period is 1 year. If the product exceeds the shelf life, test it again, and it can still be used after passing the overdue inspection.
4.Avoid contact with condensed type silicone rubber vulcanizing agent during operation. Amines, Sulfur and Phosphorus-containing compounds and some metal salts may cause liquid silicone rubber without vulcanization.
|
Item & Model
|
TBL-8780-30
|
TBL-8780-40
|
TBL-8780-50
|
TBL-8780-60
|
TBL-8780-70
|
|
Proportion
|
1:1
|
1:1
|
1:1
|
1:1
|
1:1
|
|
Appearance
|
Transparent
|
Transparent
|
Transparent
|
Transparent
|
Transparent
|
|
Viscosity/ mPa.s
|
70×104
|
80×104
|
90×104
|
100×104
|
120×104
|
|
Hardness/Shore A
|
30
|
40
|
50
|
60
|
70
|
|
Tensile Strength/MPa
|
8.0
|
9.0
|
9.0
|
9.0
|
8.0
|
|
Elongation/%
|
700
|
600
|
500
|
400
|
300
|
|
Tear Strength/kN/m
|
20
|
25
|
30
|
30
|
30
|
|
Specific Gravity/g/cm3
|
1.11
|
1.12
|
1.12
|
1.13
|
1.13
|
|
Molding Condition: 130°C X 5Min
|
|
Above data for reference only, factory inspection report shall prevail for latest testing standard and data.
|
